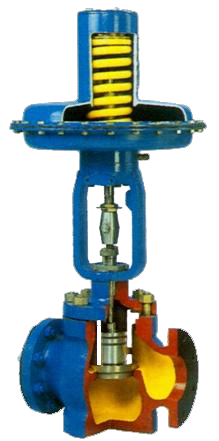

Pnuematic Control Valves

We supply Pneumatic Control Valves to meet your specific requirements and operating parameters for controlling Pressure, Flow , Levels, Temperature, PH etc.

INDUSTRIES THAT USE OUR CONTROL VALVES
Sugar Industries, Paper Mills, Rubber Industries, Power Plants, Chemical & Fibers Plants, Oil & Refineries, Textiles, Steel, Dairies & Distilleries, Pharmaceuticals, Food & Packaging Industries, Agro Products, Hospitals and many others.

Sizes available : 15 NB, 20 NB, 25 NB, 40 NB, 50 NB, 80 NB, 100 NB, 150 NB 200 NB
Rating : IBR Approved ANSI Class 150, 300 & 600
Body materials : Carbon Steel (A216 GrWCB).
Cr Mo Steel (A217 Gr WC6) / SS(CF8M) also available
End connections : Flanged / Butt Weld able.
Trim design : Parabolic-Linear / Equal % Characteristics.
Other special designs on request.
E.g. perforated trims / Pressure balanced plug / Perforated Plug / 2 Step Perforation for high pressure Drops.
Bonnet : Standard / Extended Cooling Fins (For High Temperatures).
Rangeability : 40:1
